Lambretta LD Mk3 1958 Transmission assembly or gearbox case removal and separation technique.
For indexing purposes, this post applies to Lambretta LD 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958.
[hr]
The You Tube video link below shows me splitting a 1958 LD Lambretta Transmission assembly apart for the first time in an unidentified number of years.
Information and Notes
The Lambretta LD Transmission assembly is held together by
- x9 bolts
- x1 long aligning bolt and nut (Underneath). Once the nut is removed, a mallet (or piece of wood with hammer) is require to aid in it’s removal
Tools requried:
- 5mm allen key
- Stanley blads
- Hammer
References / Manuals

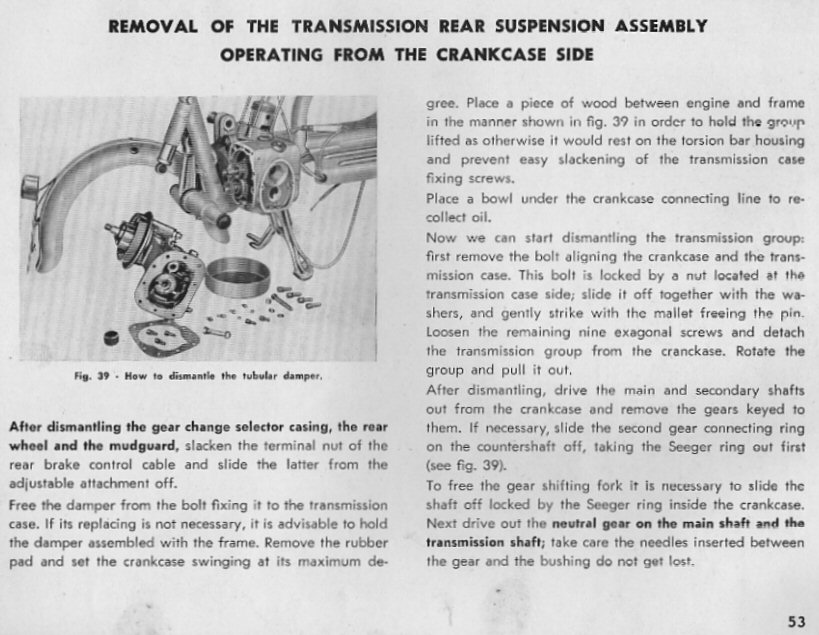

Lambretta 150d 150ld Instructions For Repair Service Manual Download – (page 53 below)
Lambretta 1957 125ld / 150ld Instructions For Repair Service Manual Download
